Bundles of  8'2" feet or 16'4" feet of patient ceiling lift track with all the mounting accessories you need for a complete, professional, safe installation. Contact us to design a longer custom installation between rooms, with curves, X-Y Gantry style to reach any point within a room, or wall mount, free span, cantilever,  vaulted ceilings, commercial or suspended ceilings.

We offer everything you need for a complete solution! New, refurbished, gently used, both fixed and portable ceiling lifts, carry bars, independent body lifters, slings, batteries,  Chargers, and pre-wired harnesses for DIY installation or by your favorite handyman with coaching, guidance, and install support from an electrical and rehabilitation engineer with 22+ years experience by video call.

Bundle of 8 ft Track + everything needed for bottom-up direct to perpendicular trusses

• (1) 8 Ft Track

• (4) 360461 3'' Ceiling Bracket Assembly (3/8" Slot) - 4 per 8' pc of track
• (4) 5/16" x 3-1/2" GRK’s RSS™ Rugged Structural Torx Screw - for bottom-up direct to perpendicular trusses

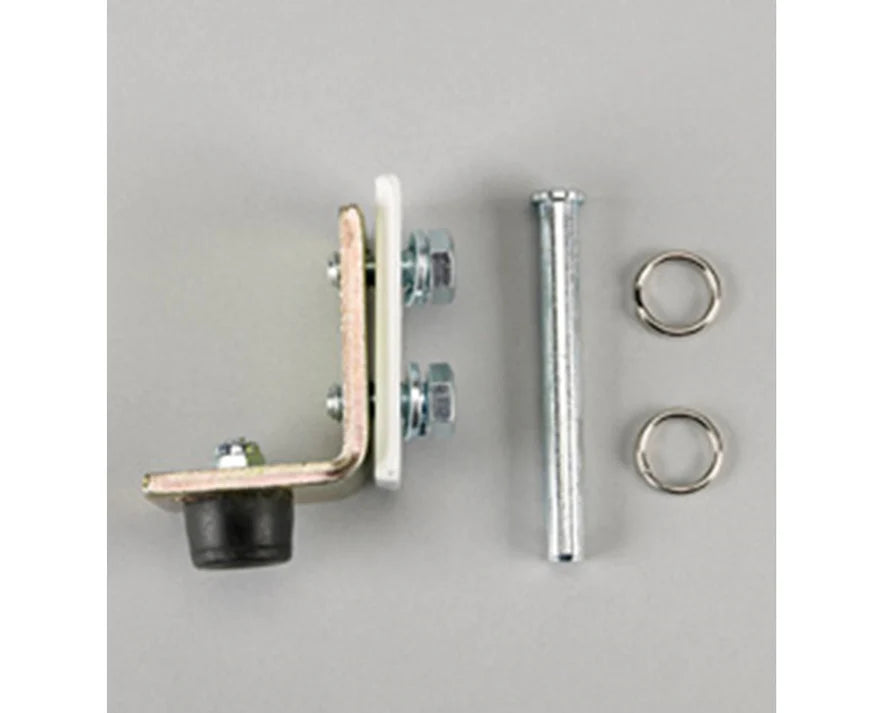

• (2) 360460 Track End top w/pin & ring (can substitute 3/8"x3" bolt & nut)

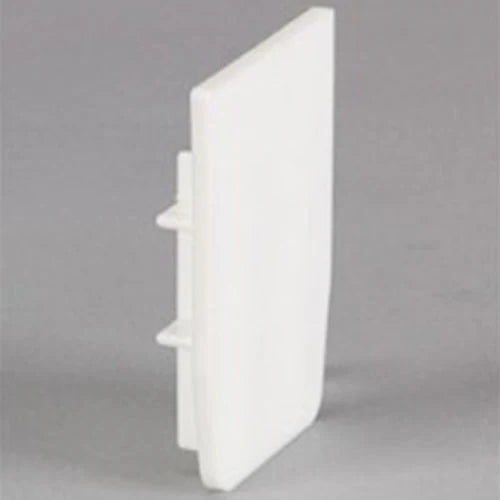

• (2) 360419 Standard Track White Molded Styrene End-cap (cosmetic not required)
• *for 16 ft double everything but substitute (1) 6'' Ceiling Bracket Assembly (3/8" Slot) to join the two 8ft pcs of track for (1) 360461 3'' Ceiling Bracket Assembly

Bundle of 8 ft Track + everything needed for bottom-up between parallel trusses

• (1) 8 Ft Track

• (4) 360704 Homecare Hardware Kit - 1 for every 2' of track - for bottom-up between parallel trusses (each kit already includes 360461 3'' Ceiling Bracket Assembly 3/8" Slot)

• (2) 360460 Track End top w/pin & ring
• (2) 360419 Standard Track White Molded Styrene End-cap
• *for 16 ft double everything but substitute (1) 6'' Ceiling Bracket Assembly (3/8" Slot) to join the two 8ft pcs of track for (1) 360461 3'' Ceiling Bracket Assembly

Choices for On-Track Charging

1. 8 ft of Omni Transstrip for Handicare C-Series Omni Constant Charging Lifts - 363959. Conveniently charges anywhere along the full length of the track
2. On Track Charging Endstop w/pin & ring for Handicare C-Series Lifts - 363791.  Push the lift to one end of the track to engage with the charging end stop.
3. Plug Charger Directly into Lift or other brand

Requires

• Fixed Patient Lift with built-in Trolley or a standalone trolley with slot or hole to hook a Portable Patient Lift into
• Carry Bar for Sling and Sling or Independent Body Lifter
• Choice of On-track charging  methods or accessories
• Batteries and Charger for lift and Wire Harness if utilizing on-track charging

• optional scale
